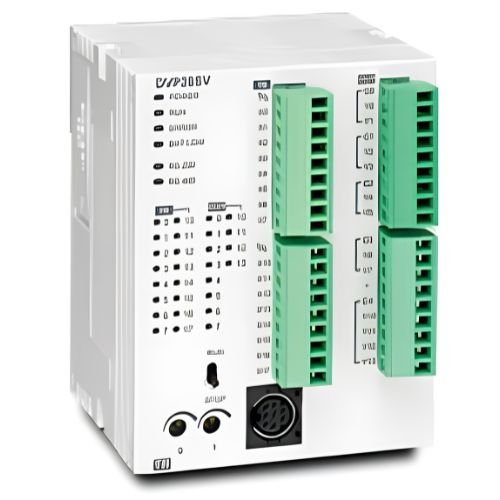

DVP SV2 Series Delta PLC
DVP SV2 Series Delta PLC
The DVP SV2 Series Delta PLC is a next-generation programmable logic controller designed for demanding industrial automation, motion control and high-speed positioning applications.
The DVP 28SV2 provides increased program capacity and data registers, making it suitable for complex automation systems requiring advanced control functions and higher processing capability.
With 4 sets of 200kHz high-speed pulse outputs and support for up to 4 hardware high-speed counters, the SV2 series is well suited for servo positioning, high-speed cutting and precision motion applications.
The PLC also provides linear and arc interpolation, motion-control instructions and up to 16 external interrupt pointers. Ethernet communication can be implemented using the ETHRW instruction, while comprehensive program protection features help safeguard automation programs and data.
01
200kHz Pulse Output
Four sets of high-speed pulse outputs
02
Motion Control
Linear and arc interpolation capabilities
03
Program Protection
Backup and password protection functions
PRODUCT DETAILS
Technical Specifications
Specifications of the DVP SV2 Series Delta PLC.
| Model Series | SV2 |
|---|---|
| Output Type | Digital |
| Communication Interface | RS 232 |
| Brand | Delta |
| Usage / Application | PLC |
| Number of Inputs | 16 Inputs |
| Model | DVP 28SV2 |
