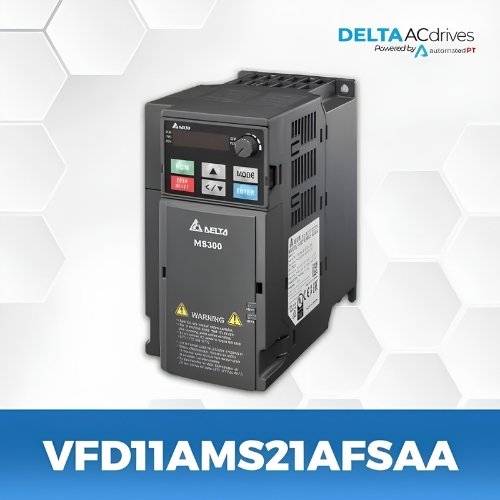

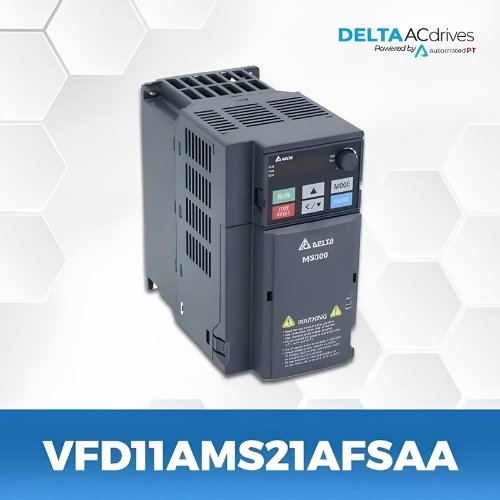

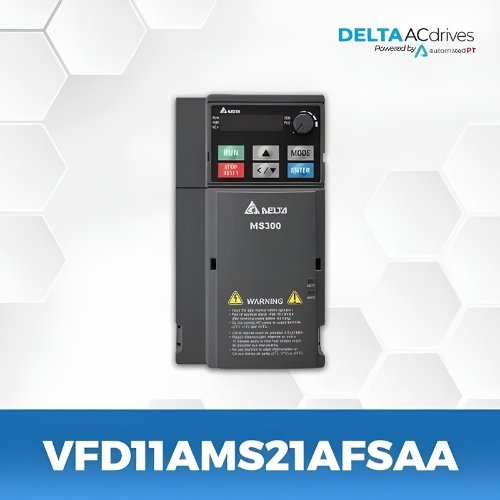

Delta VFD11AMS21AFSAA MS300 Series VFD
Delta VFD11AMS21AFSAA MS300 Series VFD
Delta VFD11AMS21AFSAA MS300 Series VFD is a compact and versatile variable frequency drive designed for industrial machinery and motor control applications.
The MS300 series combines compact construction with advanced vector control technology. It supports both induction motor (IM) and permanent magnet (PM) motor control, providing flexibility for a wide range of industrial applications.
The drive incorporates useful features including built-in PLC functionality for simple programming, USB connectivity for convenient data upload and download, communication options and STO safety functionality. Its compact design helps reduce panel space, wiring and installation requirements.
01
5 HP Power
Industrial machinery applications
02
MS300 Series
Compact vector control drive
03
Built-in PLC
Simple programming capability
PRODUCT DETAILS
Technical Specifications
Specifications of Delta VFD11AMS21AFSAA MS300 Series VFD
| Usage | For Industrial Machinery |
|---|---|
| Phase | 3 Phase |
| Input Frequency | 50 Hz |
| Power Rating | 5 HP |
| Input Voltage | 415 V AC |
| Brand | Delta |
| Model Name/Number | VFD11AMS21AFSAA |
| Series | MS300 |
| Minimum Order Quantity | 10 Piece |
| Frequency Range | 0 - 599 Hz |
| EMC Filter | Included |
| Part Number | Delta VFD11AMS21AFSAA |
| Nominal Input Voltage | 208 / 240 V AC |
| Input Voltage Range | 200 - 240 V AC |
| HP Rating | 3 HP |
| Amps (HD) | 11 A |
| Amps (ND) | 12.5 A |
| Input Phase | 1 Phase |
| Operator Controls | Sold Separately |
| Brake Type | DC Injection / Dynamic Braking |
| Motor Control | Open Loop Vector (Sensorless Vector) |
| Closed Loop | No |
| AC Line Regenerative | No |
| Dynamic Braking Transistor | Included |
| Enclosure Rating | IP20 |
| Frame Size | C2 |
| Height | 6.18 Inches |
| Width | 3.43 Inches |
| Depth | 7.06 Inches |
| Net Weight | 7 Lbs. |
