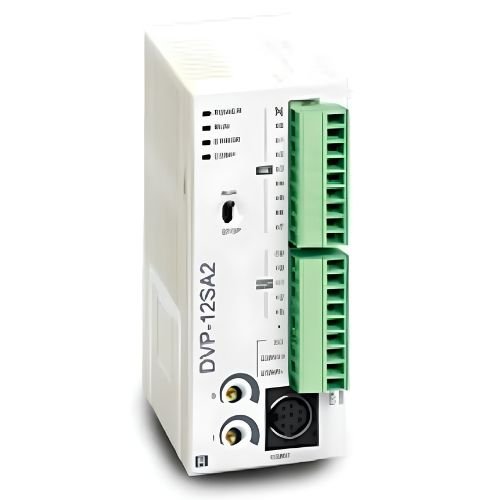

DVP SA2 Series Delta PLC
DVP SA2 Series Delta PLC
The DVP SA2 Series Delta PLC is a second-generation programmable logic controller designed for efficient industrial automation and machine control applications.
The DVP 12 SA2 offers increased program capacity and improved execution efficiency, along with high-speed pulse output and counting functions for demanding automation requirements.
The PLC provides 12 MPU points, comprising 8 digital inputs and 4 digital outputs. It supports up to 492 I/O points and a program capacity of 16K steps.
With built-in RS-232 and RS-485 communication ports, Modbus ASCII/RTU compatibility and master/slave functionality, the SA2 series can be integrated into a wide range of industrial automation networks.
01
100kHz Pulse Output
High-speed pulse output for precision
machine control
02
16K Steps
Program capacity for flexible automation
applications
03
RS-232 & RS-485
Multiple communication interfaces with
Modbus support
PRODUCT DETAILS
Technical Specifications
Specifications of the DVP SA2 Series Delta PLC.
| Model Series | SA2 |
|---|---|
| Output Type | Digital |
| Communication Interface | RS 232 |
| Brand | Delta |
| Manufacturer Series | SA2 Series |
| Usage / Application | Automation |
| Number of Inputs | 8 Inputs |
| Model | DVP 12 |
| Minimum Order Quantity | 10 Piece |
CONNECTIVITY
Communication & Control Functions
Flexible communication and high-speed control functions for integrated automation systems.
| COM Ports | Built-in RS-232 & 2 × RS-485 |
|---|---|
| Communication Protocol | Modbus ASCII / RTU |
| Communication Mode | Master or Slave |
| 100kHz Pulse Outputs | 2 Points – Y0 & Y2 |
| 10kHz Pulse Outputs | 2 Points – Y1 & Y3 |
| Program Capacity | 16K Steps |
| Maximum Expansion | Up to 8 Modules |
APPLICATIONS
DVP SA2 Series PLC Applications
Suitable for machine automation, production monitoring and a variety of industrial control systems.
01
Printing Machines
Suitable for automated printing machine
control applications.
02
Dyeing Machines
Supports automated control of industrial
dyeing equipment.
03
Container Fillers
Suitable for automated container filling
applications.
04
Production Monitoring
PLC EASY LINK capabilities for workstation and
production-line monitoring.
INDUSTRIAL USE
Suitable Automation Applications
Flexible I/O, communication and high-speed functions make the SA2 series suitable for diverse industrial systems.
| Application 01 | Printing Machine |
|---|---|
| Application 02 | Dyeing Machine |
| Application 03 | Container Filler |
| Application 04 | Workstation Monitoring |
| Application 05 | Production Line Automation |
